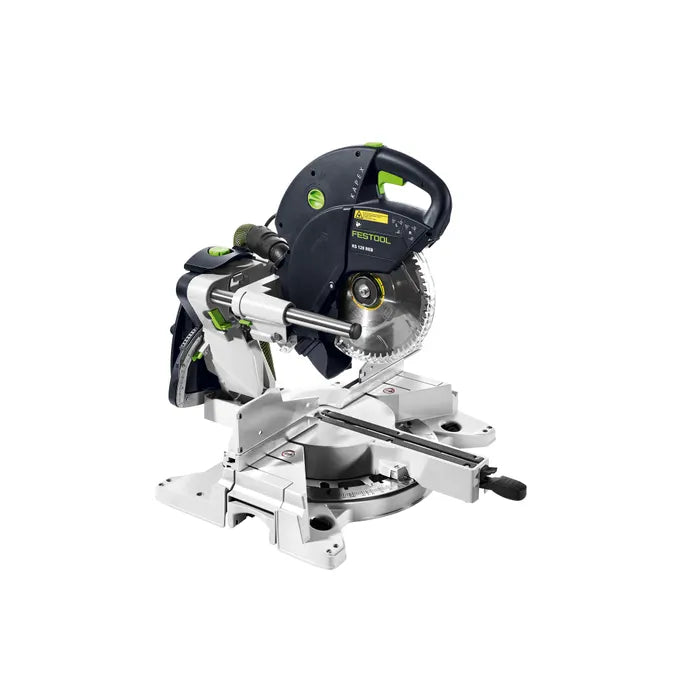

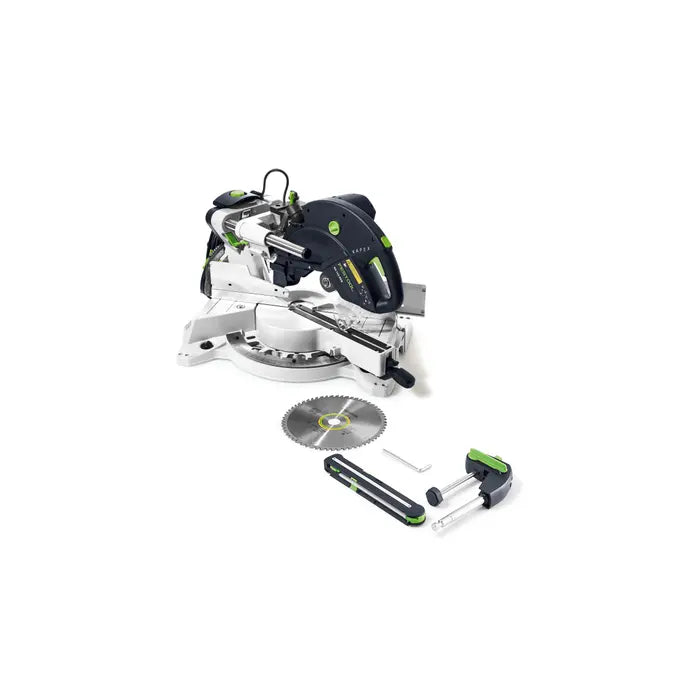

Festool KS 120R KAPEX 260mm Slide Compound Mitre Saw 575307 (Slightly damaged cardboard box) In-Store pickup only

In-Store pickup only on this item

Functions

Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.

Main Applications

• Trimming skirting boards and cornices up to 120 mm in height – no calculations
• Cutting boards and panels up to 305 x 88 mm
• Trimming crown mouldings up to 168 mm in their original wall position
• Trimming square timber and beams up to 88 mm thick

• Technical Data

  Technical Data
  Tool Weight (kg)

  23.1 kg

  Cutting Depth at 45°/90° (mm)

  215 mm x 88 mm

  Cutting Capacity at 90° (mm)

  305 mm x 88 mm

  Cutting Depth 45°/45° Left (mm)

  215 mm x 55 mm

  Cutting depth 45°/45° Right (mm)

  215 mm x 35 mm

  Cutting Depth 90°/90° (mm)

  60 mm x 120 mm

  Crown Moulding Mitre Cut at 45° (mm)

  168 mm

  Mitre Angle (°)

  50° / 60°

  Dimensions W x D x H (mm)

  713 mm x 500 mm x 470 mm

  Inclination Angle (°)

  47° / 47°

  No Load Speed (rpm)

  1,400 rpm - 3,400 rpm

  Saw Blade Diameter (mm)

  260 mm

  Dust Extraction Connection Diameter (mm)

  27 mm / 36 mm

  Power Lead Type

  Fixed Lead

  Power Source

  Corded

  Power Consumption (W or kW)

  1,600 W

  Motor Type

  Brushed
